Calyx RIM 7.0 Publishing

TOC Entries that Target Planned and Not Ready to Publish Assembly Elements

An assembly element (TOC, cover page, or document) that has not been rendered and extracted is not ready to publish.

No pages are created in the leaf, volume, or single output files for these pages. When an assembly contains unpublishable elements, the right-column text for TOC entries targeting these elements (or pages in them) is the Destination Not Found Text. There is no navigable link for these TOC entries.

The Destination Not Found Text setting is defined on the Publishing page of the Modify Publishing Settings dialog box. If the Destination Not Found Text setting is not defined, a single space is used.

Sample TOC 1

  • All elements are in-channel and included in page numbering.
  • Document& New Doc is planned and has not been assigned to a document in a DMS.

Sample TOC 2

  • All elements are in-channel and included in page numbering.
  • The template for the cover page attached to A.docx has not been rendered and extracted.
  • Document A.docx is ready to publish. Entries targeting extracted bookmarks in A.docx are resolved.

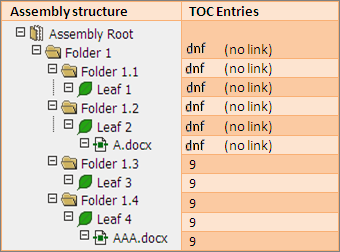

Sample TOC 3

  • All elements are in-channel and included in page numbering.
  • Document A.docx is not ready to publish with a planned page count of 8.
  • Document AAA.docx is ready to publish.
