Calyx RIM File Synchronization Overview

Synchronization of files between Calyx RIM, Azure and data stores

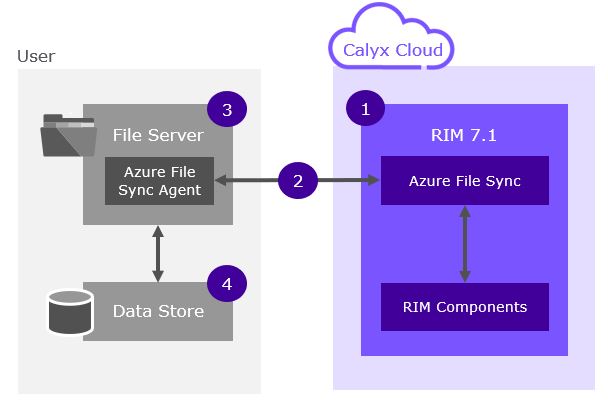

The following process shows the file synchronization between Calyx RIM, Azure server and the data server.

1. Calyx RIM Storage

Calyx RIM storage is protected by network security services in addition to Azure Defender and Azure Advanced Threat Prevention.

A user requires a Windows file server where the Azure File Sync Agent can be installed.
All communications to Calyx RIM are outbound from the agent via https (port 443).
Agent can be placed behind a user proxy server.

If data is stored on a non-Windows file server, the data should be directly attached to a Windows file server.

The following provides further details for file sychronization.

All communications are HTTPS, Port 443 FileREST Protocol.
Although files are synced both ways all connections are initiated outbound from the Customer File Sync Server to the Azure File Sync Services. No inbound ports need to be opened in the Customer environment.
File share can only be accessed with a SAS Token. This is created when the File Sync server is set up.
File share is protected by a storage firewall that is configured to only allow customer IP addresses to access the endpoint.
All Calyx RIM servers are protected with Anti-Virus/Anti-Malware software.
All Calyx RIM servers are monitored by our Security Operations Centre (SOC).
All Calyx RIM storage accounts are protected with Microsoft Defender.
Files within the Calyx RIM application are modified and updated by customer publishing end users via the Calyx RIM application, there is no other external access.
Approximately 90% of files that are sent back are PDF.
Any files that need to be synced with Calyx RIM will need to be copied to a folder on the customer File Sync Server.
End users will continue to access Calyx RIM via a URL over the internet, there is no impact on their interaction with Calyx RIM.
3rd Party pen testing has been completed as part of the product release.
