Assembly Baselines

You can track the changes of an assembly by multiple user groups to establish a baseline.

Once an assembly is in a semi-completed state, you can begin to track changes to its structure and content. This enables multiple groups of users to track changes before the assembly is approved. It also enables an assembly group and publishing group to synchronize changes to the assembly with an external publishing application.

The current assembly outline becomes the baseline when the baseline is set; any existing baseline for that version is erased. After you begin to make changes to the assembly, you can view differences between the updated assembly and the baseline.

Note: Only an administrator can set the baseline for an assembly.

View an Assembly Baseline

You can track the changes of an assembly by multiple user groups to establish a baseline.

To view baseline differences:

  1. Click a link for the assembly whose baseline differences you want to view.
  2. Right-click the assembly root and choose View Baseline Differences.

    Example

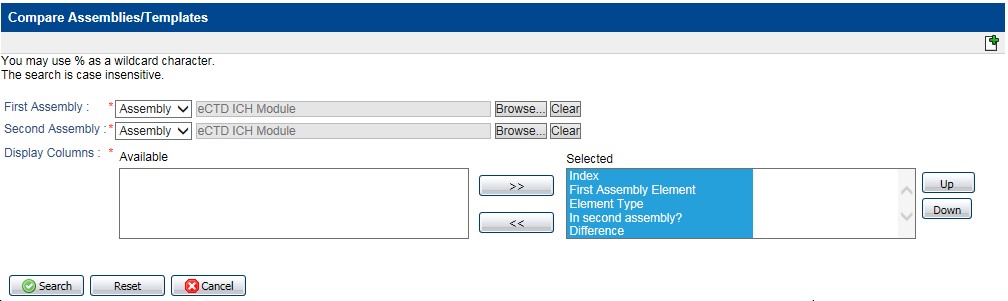

    The Compare Assemblies/Templates page opens with the baseline assembly in the First Assembly box and the current assembly in the Second Assembly box.

  3. In the Available Columns box, select the columns to include in the query and move them to the Selected Columns box.

    To remove columns from the Selected Columns box, select them and move them to the Available Columns box.

  4. To change the order of the columns as they appear from left to right in the query results, select a column in the Selected Columns box and click up or down.
  5. Click Search.

    Ennov InSight Publisher 7.3 Assembly Baselines

    The comparison query results are displayed.

  6. To return to the Assembly Attributes page, click Back.
